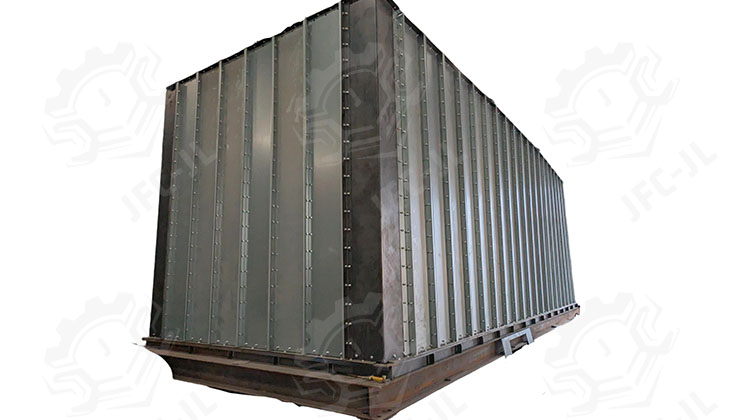

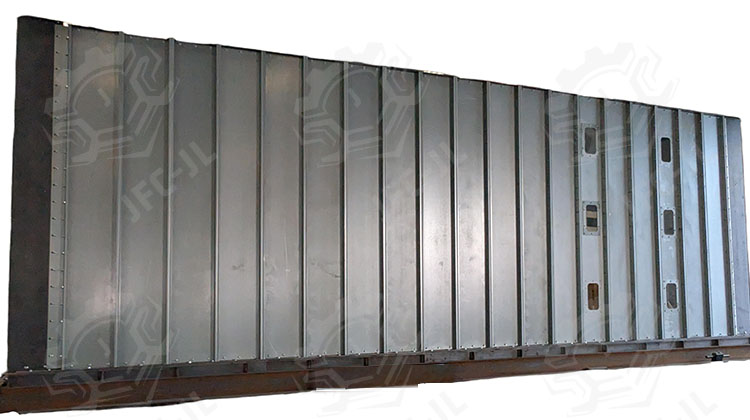

The wood sawdust hydraulic silo is mainly composed of a gantry frame, sliding main beam, movable material shifting fins, fixed material shifting fins, hydraulic cylinder, hydraulic station, auger discharge system and silo body.
The application of the hydraulic silo enables sealed material storage. This design eliminates the poor working environment and operational disruptions caused by open material stacking, effectively suppresses dust emission, and cuts down the costs of forklift and manual handling. A flameproof vent is installed on the top of the silo, which significantly reduces the risk of dust explosions.
Volume (m3) | Type | Total Volume (m3) | Power (kw) | Capacity (t/h) | Dimension (m) |
1-100 | 1 hydraulic station + 2 hydraulic cylinders | 53 | 7.5 | 1-3 | 2.5×6×3.58 |
38 | 7.5 | 1-3 | 2.5×6×2.58 | ||
71 | 7.5 | 1-3 | 2.5×6×4.74 | ||
100-200 | 2 hydraulic stations + 4 hydraulic cylinders | 103 | 11×2 | 4-10 | 5×8×2.58 |
143 | 11×2 | 4-10 | 5×8×3.58 | ||
189 | 11×2 | 4-10 | 5×8×4.74 | ||
200-300 | 2 hydraulic stations + 4 hydraulic cylinders | 229 | 11×2 | 4-10 | 5×8×5.74 |
