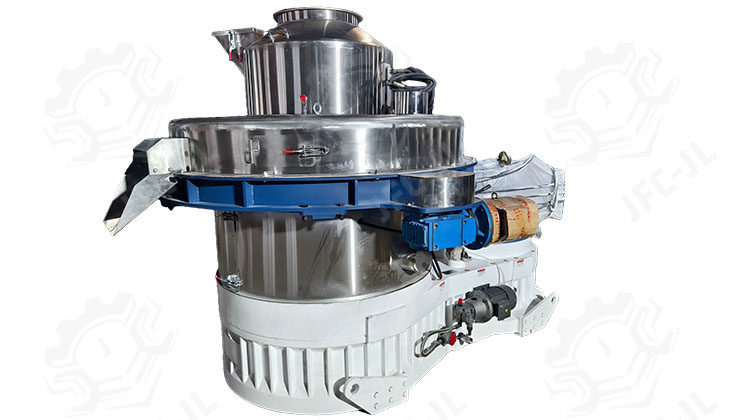

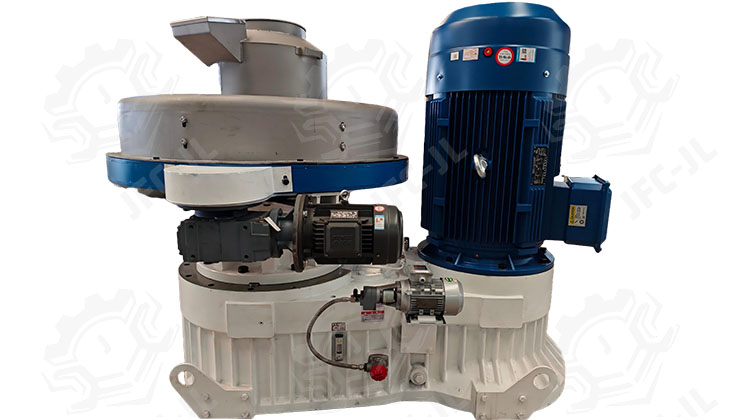

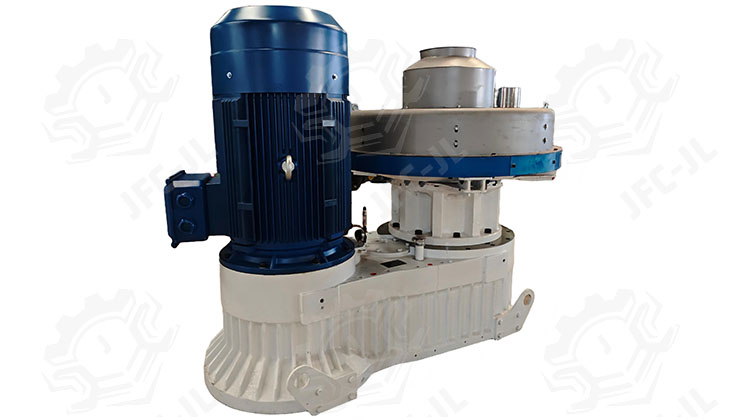

Wood Pellet Machine is to compresses various waste from forestry and agricultural into biomass fuel. Complete set pellet mill is equipped with motor, air fan, bag dust collector, automatic lubrication pump and electric control cabinet.
Model | Power (kw) | Capacity (t/h) | Pellet Size (mm) | Dimension (mm) | Weight (t) |
560A | 90 | 1.1-1.3 | 6-12 | 2500×1500×2000 | 4.2 |
560B | 110 | 1.4-1.7 | 6-12 | 2500×1500×2000 | 4.5 |
560C | 132 | 1.5-2.1 | 6-12 | 2500×1500×2000 | 5 |
560D | 160 | 2.0-2.5 | 6-12 | 2500×1500×2000 | 5.3 |
850A | 250 | 3.0-4.0 | 6-12 | 2700×1800×2300 | 12.6 |
850B | 280 | 3.8-4.5 | 6-12 | 3100×1900×2300 | 13.5 |
850C | 355 | 4.6-5.0 | 6-12 | 3300×2000×2300 | 14.1 |
1050 | 450/560 | 7-9 | 6-12 | 3980×2060×3450 | 23 |
Woody Materials: Wood logs, wood branches, wood chips, wood shavings, and other wood-based waste materials.
Agricultural Waste: Rice husk, sunflower husk, peanut shells, empty fruit bunches (EFB) from palm, alfalfa, bamboo, fruit shells, and crop stalks.
Other Materials: Cow dung, coconut shells, bamboo, activated carbon, sugarcane bagasse, cement, ash, fertilizers, chemicals, etc.
